How XINXIN WELDING Helped a Collision Repair Workshop Reduce Panel Distortion and Better Preserve Corrosion

Protection

Introduction

Modern vehicles are engineered with increasingly thin, galvanized high-strength steel panels to reduce weight while

improving corrosion resistance. These materials perform exceptionally well on the road—but they also demand greater

precision during repair.

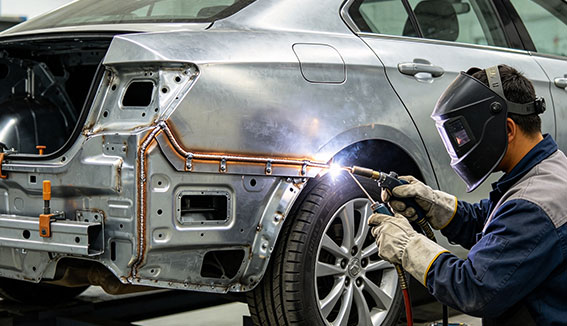

One independent collision repair workshop experienced recurring heat-related issues during conventional MIG welding.

Rather than replacing equipment, the workshop worked with XINXIN WELDING to evaluate whether a different filler metal

could provide a better solution.

Project Background

Industry: Automotive Collision Repair

Location: Central Europe

Vehicle Type: Mid-size passenger vehicles and SUVs

Repair Scope: Replacement and joining of galvanized outer body panels

Typical components included door outer panels, quarter panels, wheel arch sections, roof skins and rear body panels.

Most joints involved galvanized steel between 0.7 mm and 1.0 mm thick.

Existing Repair Process

The workshop used conventional MIG welding with carbon steel wire and an Ar/CO₂ shielding gas mixture. Despite

optimizing welding parameters, technicians continued to experience damage to the zinc coating, panel distortion, excessive

finishing work and rising repair costs.

Engineering Evaluation

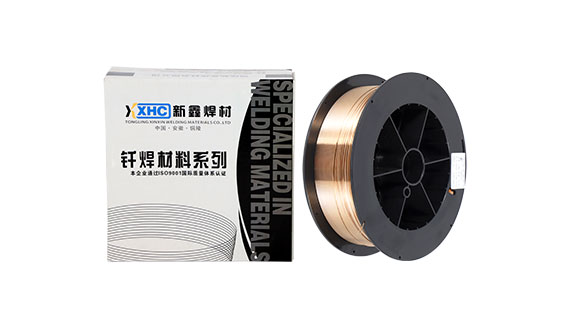

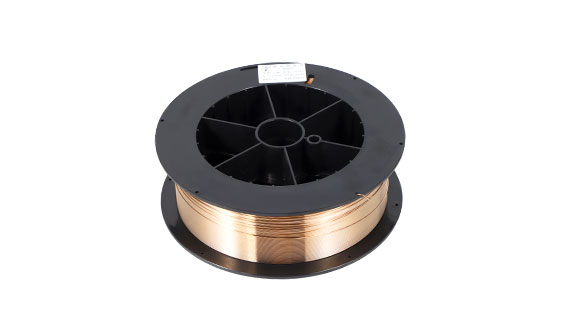

XINXIN WELDING recommended evaluating CuSi-A Silicon Bronze Welding Wire (AWS A5.7 ERCuSi-A) using a MIG

brazing process with 100% argon shielding gas. The existing MIG equipment was retained and only minor parameter

adjustments were required.

Trial Results

• Better preservation of the galvanized coating due to lower heat input.

• Reduced distortion on thin sheet metal.

• Cleaner brazed joints with minimal spatter.

• Less grinding before painting.

• Improved workshop productivity through shorter repair cycles.

Why CuSi-A Performs Differently

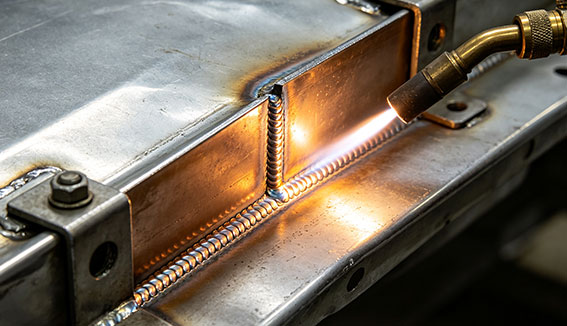

Unlike conventional steel welding, MIG brazing with CuSi-A melts the silicon bronze filler while exposing the surrounding

galvanized steel to significantly lower thermal stress. For suitable applications specified or approved by vehicle manufacturers,

this helps preserve corrosion protection while producing clean, consistent joints.

Why Choose XINXIN WELDING

XINXIN WELDING manufactures CuSi-A Silicon Bronze Welding Wire using high-purity raw materials and strict quality

control. Every production batch is inspected for chemical composition, wire diameter, feeding stability, arc performance and

brazing quality. OEM and private-label services are available.

Conclusion

For repair shops working with galvanized sheet steel, CuSi-A MIG brazing offers a practical solution for reducing heat

distortion, preserving corrosion protection and improving repair efficiency where the process is appropriate and follows vehicle

manufacturer repair procedures.

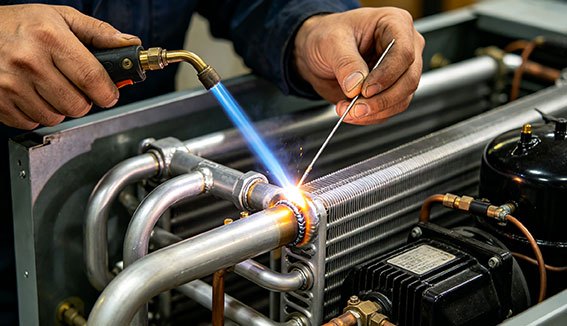

When a new batch of refrigeration units repeatedly failed the final pressure test, the production manager immediately

suspected the brazing rods.

The joints looked clean. The filler metal had melted evenly. Nothing appeared unusual. Yet nearly one out of every ten

copper-to-aluminum joints developed leaks during helium leak testing.

Replacing the brazing rods didn't solve the problem. Changing torch operators didn't help either. The factory was losing

production time, increasing rework costs, and struggling to identify the real cause.

Situations like this are more common than many manufacturers realize.

At XINXIN WELDING, we frequently receive inquiries from customers facing similar challenges. While every production

line is different, the root causes are often surprisingly similar.

Looking Beyond the Brazing Rod

After reviewing the customer's brazing process, one detail immediately stood out. Operators were directing the flame

toward the flux-cored brazing rod instead of heating the copper and aluminum components first.

The filler rod melted quickly, creating what appeared to be a complete weld. However, because the base metals had

not reached the proper brazing temperature, the molten filler alloy could not fully wet the joint surfaces or flow through the

joint clearance by capillary action. The joint looked acceptable but contained microscopic voids that later became leakage

paths during pressure testing.

Engineer's Note

Never melt the filler rod directly with the flame. Heat the base metals first. The brazing alloy should melt from the heat

stored in the workpiece, ensuring complete wetting and proper capillary flow.

Why Copper and Aluminum Behave Differently

Copper conducts heat extremely quickly, while aluminum has a much lower melting point and is covered by a tenacious

oxide layer. This creates a narrow processing window. Too much heat may damage the aluminum before the filler flows. Too

little heat prevents proper metallurgical bonding.

A Small Process Change That Made a Big Difference

The customer cleaned every joint thoroughly, changed the heating sequence, and heated both base metals evenly

before feeding the flux-cored brazing rod. Once the joint reached the correct brazing temperature, the filler metal flowed

naturally into the joint by capillary action, producing dense, uniform brazed joints. Leak failures dropped dramatically.

Engineer's Note

Successful brazing is not about applying more heat. It is about applying heat evenly, in the correct sequence, and at

the proper temperature.

What Every Manufacturer Can Learn

Most copper-to-aluminum brazing defects are caused by five preventable issues:

• Heating the filler rod instead of the joint

• Overheating aluminum

• Poor surface preparation

• Feeding the filler alloy too early

• Uneven torch movement

Why Flux-Cored Brazing Rods Simplify Production

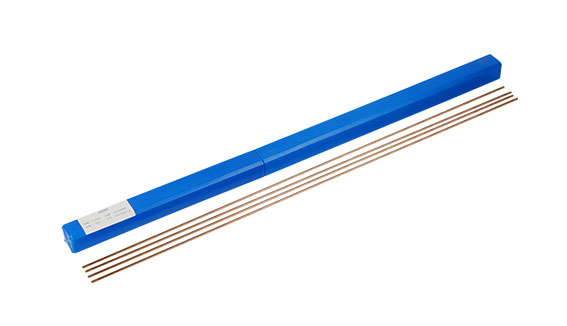

Flux-cored brazing rods eliminate the need for separate flux application, improve consistency, reduce operator error,

and produce strong, leak-resistant joints when used with the correct brazing process.

How XINXIN WELDING Supports Manufacturers

At Tongling Xinxin Welding Materials Co., Ltd., we believe successful brazing comes from combining high-quality filler

materials with proven process control. Our engineering team works with customers to reduce defects, improve productivity,

and optimize copper-to-aluminum brazing applications.

Conclusion

Our goal is not simply to supply brazing consumables. We help manufacturers solve brazing problems and build stronger,

cleaner, and more reliable brazed joints.

As extreme rainfall events lead to frequent urban flooding, the limitations of traditional drainage methods have become a critical bottleneck. Conventional vehicle-mounted pumps struggle with inaccessible terrains, manual deployment is slow and carries high risks of electrocution or structural collapse, and electric pumps are prone to short-circuiting in submerged environments. These challenges lead to missed windows for effective flood mitigation.

The Selamhyd Remote Control Flood Drainage Robot represents a disruptive innovation in emergency drainage. By integrating a tracked chassis for all-terrain mobility, a high-stability hydraulic system, and unmanned remote operation, it shatters traditional bottlenecks across three dimensions: deployment, operation, and safety.

1.Precision Access: Eliminating Deployment Delays

One of the core advantages of this tracked intelligent drainage equipment is its ability to solve the "last mile" accessibility problem. When tunnels are submerged or main roads are blocked by debris and thick sludge, standard trailer pumps must remain in safe zones, significantly reducing suction efficiency.

Equipped with a reinforced Crawler slurry drainage equipment chassis, this robot features a wide-track design that minimizes ground pressure. It can traverse deep water, thick mud, and gravel piles, climbing steep slopes and crossing obstacles without the need for manual path clearing. Compared to traditional setups, it reduces pre-operation preparation time by over 70%, turning "waiting for deployment" into "immediate activation."

2.Hydraulic Power: Non-Stop Operation in Harsh Conditions

The true efficiency of the robot lies in its Large flow hydraulic sewage pump. Floodwaters are often laden with rocks, vegetation, and heavy silt. While electric pumps often fail due to clogging or short circuits, the Hydraulic slurry pump is engineered for the most punishing conditions.

Durability: The wear-resistant pump body handles high-solid-content water without interruption.

Instant Start: As a Self-priming intelligent drainage robot, it eliminates the tedious manual priming process. Once on-site, it begins suction immediately via remote command.

3.Unmanned Operation: Safety-Driven Speed

Safety concerns often slow down manual operations. The Remote Control Flood Drainage Robot allows operators to remain in a safe zone, controlled from a distance. This removes the need for time-consuming on-site risk assessments for personnel, ensuring that the Intelligent drainage equipment can work continuously and safely through the night or in unstable environments.

From routine municipal pipe maintenance to the demanding requirements of Pumped storage equipment, professionals face a consistent set of challenges: high-viscosity sludge, confined spaces, and the need for high-head performance. Traditional equipment often lacks the power for deep-well lifts or the compact footprint required for narrow urban alleys.

Finding the right Large flow hydraulic submersible pump is about matching the equipment to the specific environmental constraints of the project.

1. The Portable Solution for Confined Municipal Spaces

In narrow alleys or basement corners where heavy machinery cannot enter, the Portable hydraulic sewage pump is the preferred choice. Its modular, lightweight design allows 2–3 workers to deploy the unit without heavy lifting gear. Despite its size, when integrated into Portable intelligent drainage equipment, it delivers high-performance suction that handles high-solid-content municipal sludge with ease, solving the dilemma of "small equipment lacking power."

2. High-Head Performance for Pumped Storage and Deep Wells

For Pumped storage tools and deep-well maintenance, the requirements for lift (head) and flow are grueling. The High head hydraulic slurry pump is specifically engineered for these high-difficulty tasks.

Vertical Lift: Its multi-stage impeller design lifts high-viscosity slurry from deep shafts to the surface effortlessly.

Scale: The Large flow hydraulic pumping machinery ensures massive volumes of water are transferred rapidly, matching the operational tempo of pumped storage power stations.

3. Precision Robotics for Small-Diameter Pipes

For pipes where human entry is impossible, the Mini hydraulic drainage robot offers a "micro-invasive" solution. Equipped with a Hydraulic suction pump and high-definition vision systems, it navigates small-diameter pipes to remove blockages without the need for costly excavation or road repairs.

4. Submerged Efficiency: Harbor and Reservoir Maintenance

For harbor dredging and reservoir upkeep, the combination of an Underwater intelligent drainage robot and a Large flow hydraulic axial flow pump is revolutionary. It allows for continuous underwater clearing without draining the site or building cofferdams, significantly reducing operational costs and environmental impact.

Whether it is a Flood control hydraulic machine for emergencies or a Large flow hydraulic trash pump for industrial waste, the hydraulic advantage lies in its power-to-weight ratio and reliability.

What Is a Fire Hydrant?

A fire hydrant is a fixed fire-fighting facility. Its main functions are to control combustibles, isolate oxidizers, and eliminate ignition sources. Fire hydrants are mainly divided into indoor fire hydrants and outdoor fire hydrants. For the general public, indoor fire hydrants are the most commonly used type.

Indoor Fire Hydrants

Indoor fire hydrants are widely used fire-extinguishing systems in buildings and serve as one of the key facilities for putting out indoor fires. The components inside an indoor fire hydrant cabinet include:

Fire hose，Fire nozzle，Hydrant valve，Fire hydrant alarm button

Some fire hydrant cabinets may also be equipped with a fire hose reel (portable fire water hose) and fire extinguishers.

Indoor fire hydrants should be installed in public shared spaces such as corridors or halls. They are usually built into the walls of these spaces. Regardless of the decoration applied around them, they must have a clear label (marked "Fire Hydrant") and no obstacles placed in front of them—this prevents interference with the opening of the hydrant cabinet door.



How to Use Fire Hydrant?



How to use it correctly? The following step-by-step guide (with visual references) will help you master the operation of an indoor fire hydrant.



Step1

One person presses the switch to open the hydrant cabinet door, then takes out the fire hose and fire nozzle.

Step2

Unfold the fire hose completely. Leave one hose connector on the ground, connect the other connector to the fire nozzle, and then move toward the fire site.

Step3

Another person connects the free end of the fire hose to the water outlet of the hydrant, and helps to fully spread and straighten the hose.

Step4

The person at the fire site stands in an effective position upwind or at an oblique upwind direction relative to the fire. Hold the fire nozzle with one hand and grip the connection between the nozzle and the hose with the other. Bend the front leg and straighten the back leg to get into a stable water-spraying posture.

Step5

The other person, after ensuring the hose is properly arranged, quickly returns to the fire hydrant. Press the water pump start button, then turn the water outlet valve counterclockwise to the fully open position.

Step6

Once water flows out, the person holding the nozzle keeps a firm grip. Aim the water jet at the base of the flame, spray in a left-right swinging motion, and slowly move forward from near to far to extinguish the fire completely.

Choosing the right Plastic Pelletizer Knife for your underwater pelletizing system is a critical decision that directly impacts pellet quality, downtime, and long-term operational costs. While many materials exist, Tungsten Carbide (WC) and Titanium-based alloys (often with specialized coatings) stand out as the industry titans.

Tungsten Carbide: The Workhorse of Hardness

Tungsten Carbide remains the "gold standard" for high-volume production. Its primary advantage is extreme hardness and wear resistance. If you are processing abrasive resins like glass-filled polymers or high-density polyethylene (HDPE), WC blades maintain a sharp cutting edge for extended periods. This precision ensures a uniform "spherical" shape and minimizes the production of fines or dust. However, their brittleness makes them susceptible to chipping if the pelletizer plate is misaligned or if foreign metal debris enters the water box.

Titanium & Advanced Alloys: The Specialized Contenders

Titanium-based blades, often utilized with Cermet or specialized TiN (Titanium Nitride) coatings, offer a different set of benefits. Their standout feature is corrosion resistance and toughness. For production lines handling chemically aggressive materials or biodegradable plastics, titanium-based solutions prevent premature blade degradation caused by chemical reactions. While slightly less hard than pure WC, they are less prone to catastrophic fracturing under thermal shock or mechanical impact.

To determine the best fit, consider these factors:

Material Abrasiveness: High abrasion favors Tungsten Carbide.

Chemical Environment: Corrosive additives favor Titanium alloys.

Maintenance Strategy: If your operators are prone to aggressive "starting" procedures, the toughness of Titanium might save you from frequent blade replacements.

Ultimately, the goal is to balance the hardness required for a clean cut with the durability needed to survive your specific production environment. Investing in the right metallurgy today is the best way to ensure a seamless, "no-clog" tomorrow.

The Importance of High-Quality Shredder Knives in Industrial Applications

In today's industrial landscape, efficient material processing is crucial for productivity and cost-effectiveness. One essential component in this process is shredder knives, which play a vital role in recycling, waste management, and various manufacturing industries. High-quality shredder blades ensure precision cutting, durability, and superior performance, making them indispensable for businesses that require reliable shredding solutions.

Why Choose Premium Shredder Knives?

The efficiency of shredding machines heavily depends on the quality of their blades. Using substandard shredder knives can lead to frequent replacements, increased downtime, and higher operational costs. At Ma'anshan Licheng Blade Manufacturing Co., Ltd., we understand these challenges and provide top-tier shredder blades designed for longevity and high performance. Our blades are crafted from premium imported materials and undergo rigorous quality control to meet the highest industry standards.

Applications of Shredder Blades

Our shredder knives are widely used in industries such as:

• Recycling & Waste Management – Ideal for processing plastics, metals, and other recyclable materials.

• Packaging & Printing – Ensuring precision cuts for paper, cardboard, and flexible packaging materials.

• Textile & Fiber Industry – Effective in cutting fabrics, non-woven materials, and industrial fibers.

• Food Processing – Providing hygienic and precise cutting solutions for various food products.

Additionally, our slitting knife products are widely applied in film cutting, rubber processing, and tape slitting, ensuring clean and precise cuts with minimal waste.

Ma'anshan Licheng Blade’s Competitive Edge

As a leading manufacturer with years of experience, Ma'anshan Licheng Blade Manufacturing Co., Ltd. offers a comprehensive selection of over 400 blade types, ensuring that we meet the diverse needs of our customers. Our advantages include:

• Superior Material Selection – We use high-quality imported materials to ensure durability and resistance to wear.

• Comprehensive Product Range – From shredder knives to slitting knife solutions, we provide customized options for various industries.

• Global Export & Trusted Reputation – Our products are exported to Japan, South Korea, Hong Kong, and South Asia, earning widespread recognition.

• Customer-Centric Services – We offer tailored solutions, technical support, and after-sales services to ensure customer satisfaction.

If you are looking for premium shredder knives, shredder blades, or slitting knife solutions, Ma'anshan Licheng Blade is your trusted partner. Contact us today to explore how our products can enhance your industrial operations.
